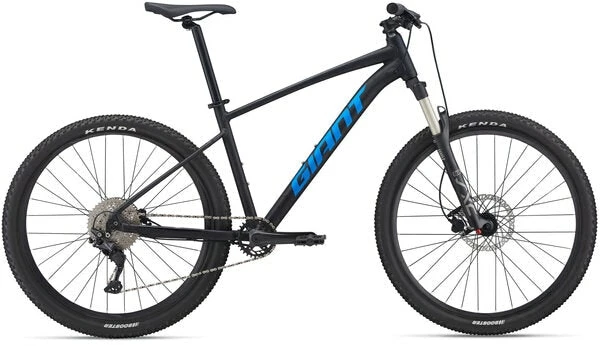

Giant Talon 1

Overview

Built on a new, very lightweight ALUXX aluminum frame, featuring a classic hardtail design plus the balanced handling characteristics of larger diameter 27.5 or 29-inch wheels. Talon is a great choice for XC or light trail terrain. Its frame geometry is specifically designed to suit its respective wheel size and an 80mm or 100mm suspension (27.5″ or 29″ rim respectively) gives you a confident ride that’s perfect for ambitious riders who want to carry your off-road skills to the next level.
Tech Specs:

Frame: ALUXX-Grade Aluminum, disc

Fork: SXC32-2 RL, air spring, QR, alloy steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M: 100mm travel (27.5) / 100mm travel (29) L: 100mm travel (27.5) / 100mm travel (29) XL: 100mm travel (29) XXL: 100mm travel (29)

Bottom Bracket: cartridge

Stem: Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (27.5) / 60mm (29) L: 70mm (27.5) / 70mm (29) XL: 80mm (29) XXL: 90mm (29)

Handlebar: Giant Connect Trail, 31.8mm XS: 730mm (27.5) S: 780mm (27.5) / 780mm (29) M: 780mm (27.5) / 780mm (29) L: 780mm (27.5) / 780mm (29) XL: 780mm (29) XXL: 780mm (29)

Saddle: Giant custom

Seatpost: Giant Sport, 30.9 XS: 300mm (27.5) S: 300mm (27.5) / 375mm (29) M: 375mm (27.5) / 375mm (29) L: 375mm (27.5) / 375mm (29) XL: 375mm (29) XXL: 375mm (29)

Pedals: MTB caged

Grips: Giant Sole-O

Groupset:

Rear Derailleur: Shimano Deore M5120

Crank: ProWheel Charm, 30t (27.5) or 32t (29) XS: 165mm (27.5) S: 170mm (27.5) / 170mm (29) M: 170mm (27.5) / 175mm (29) L: 175mm (27.5) / 175mm (29) XL: 175mm (29) XXL: 175mm (29)

Shifters: Shimano Deore M4100, 1×10

Cassette: Shimano Deore M4100, 11×42

Chain: KMC X10

Brakes: Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm

Brake Levers: Tektro HDC M275

Wheelset:

Rims: Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width

Spokes: Stainless, 14g

Front Hub: alloy, ball bearing

Rear Hub: alloy, ball bearing

Tires: Kenda Booster 27.5 or 29×2.4″, wire bead
