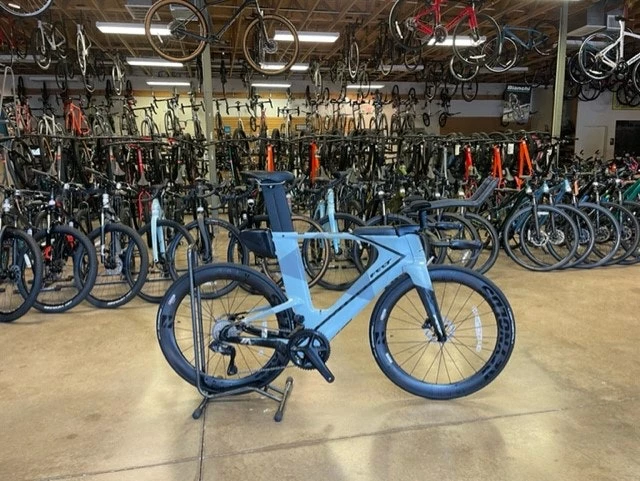

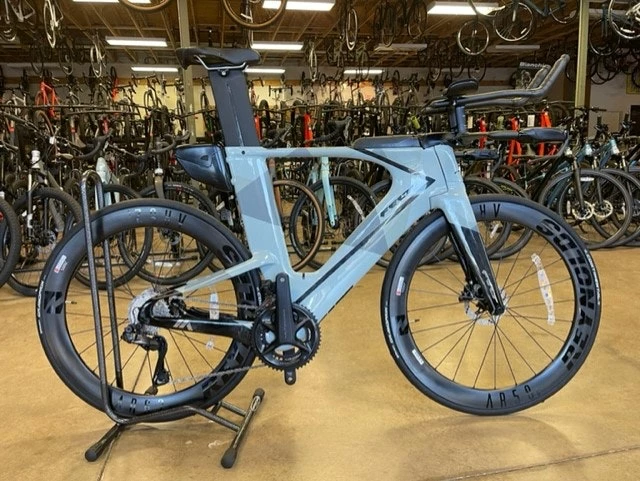

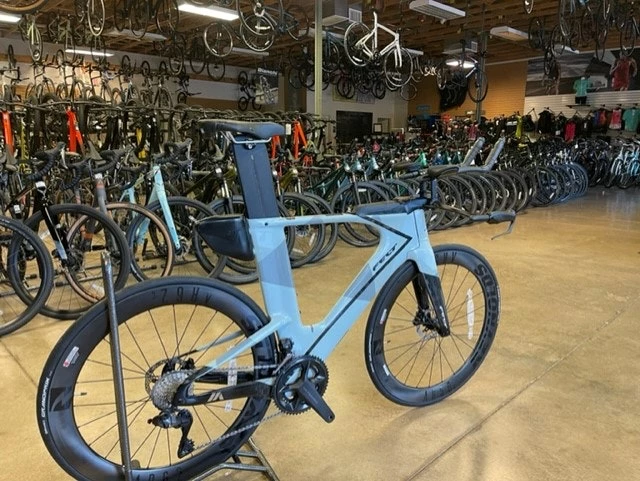

Felt IA Advanced Shimano Ultegra Di2 (12 Speed) W/ Reynolds AR 58/62 Disc Surfmist 2023

IA | ADVANCED | ULTEGRA DI2
Our most popular triathlon frame decked out with a Shimano electronic groupset, Reynolds carbon wheels, and hydraulic disc brakes. World championship-winning aero efficiency.

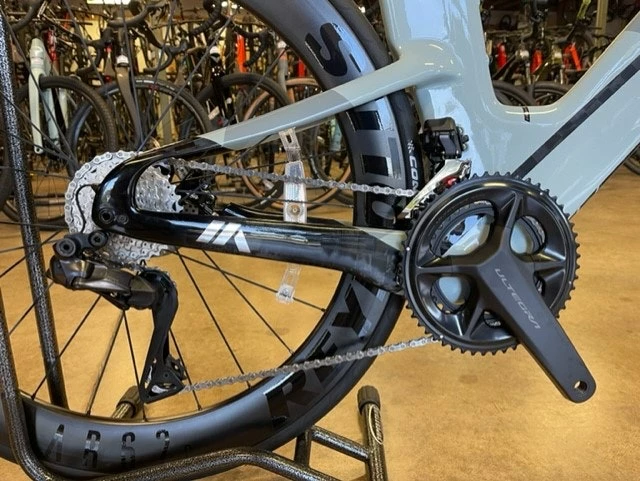

Shimano Ultegra Di2 electronic drivetrain
Hydraulic disc brakes

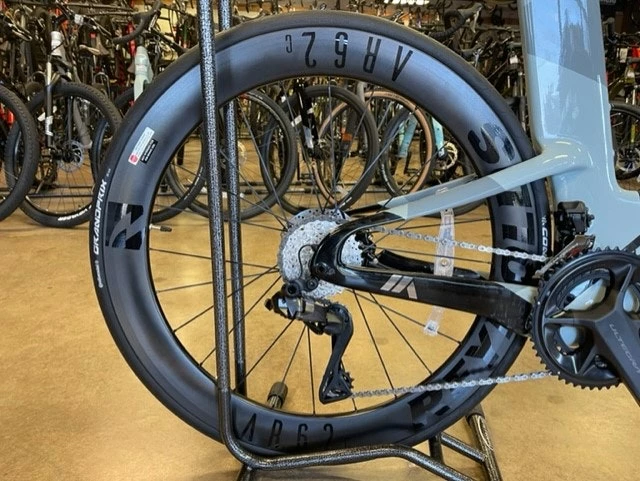

Reynolds AR58 and AR62 carbon wheels

DETAILED TECHNICAL SPECIFICATIONS
VERSION IA | 4 SERIES IA DISC (1.0)
MODEL IA | Advanced | Ultegra Di2 PRICE $ 7,299
MARKET Global FINISH 1) White (Geo) 2) Purple (Geo)
MODEL CODE 1) FB-21A-IAX12-WH-FA 2) FB-21A-IAX12-PL-FA MODEL # M3 1) BBJCA04 2) BBJCA10

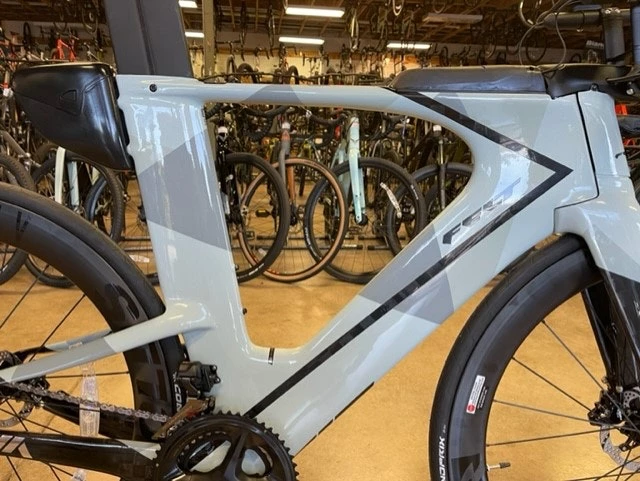

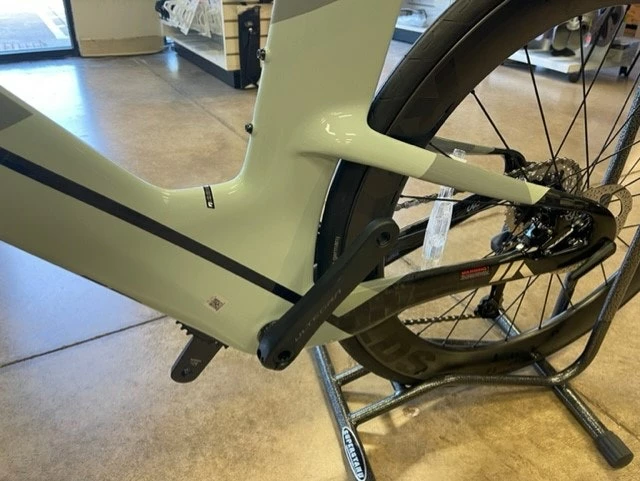

SIZES 5 | 48, 51, 54, 56, 58cm FRAME Felt IntegratedAero Disc | UHC Advanced + TeXtreme carbon fiber
FRAME TECHNOLOGIES MMC / InsideOut BOTTOM BRACKET TYPE Threaded | BSA 68mm
BRAKE TYPE, REAR Disc, Flat Mount | Ø140mm minimum DERAILLEUR HANGER TYPE, FRONT Brazed-On | integrated backup plate, non-replaceable, aluminum
DERAILLEUR HANGER TYPE, REAR Standard Mount | TA 12×142 TRI/TT, horizontal, replaceable, aluminum HEAD-TUBE TYPE Felt Aero | 1.125″ /
PROTECTOR TYPE Steerer stop integration for head tube protection / Felt ChainPlate for chain suck protection / Clear vinyl for chain slap protection ROUTING TYPE Semi-Hidden | convertible for electronic or mechanical
SEAT POST / CLAMP TYPE Felt AeroTRI InternaLoc 1.0 | integrated with titanium bolts WHEEL TYPE 700c
TIRE MAX (CLEARANCE) 28mm (4mm) FORK Felt IntegratedAero Dagger Disc | UHC Advanced + TeXtreme carbon fiber
HEADSET IS (IS-2) AXLE, FRONT TA 12×100
AXLE, REAR TA 12×142, horizontal FORK TECHNOLOGIES Monocoque construction / Integrated crown race
BRAKE TYPE, FRONT Disc, Flat Mount | Ø140mm minimum FORK OFFSET 48, 51cm: 50mm / 54, 56, 58cm: 45mm
HEADSET SPECIFICATION Top Cap: stem integrated / Top Cover: stem integrated / Bearings: FSA integrated sealed cartridge, MR122 / Spacers: – / Compression Device: Felt for carbon steerer tube / Compression Ring: FSA H2145 / Crown Race: fork integrated AXLE, FRONT SPECIFICATION Devox AxleTA 123.2 | 118mm + 5.2mm head, M12 x 1.5P x 13mm, Switch lever compatible
AXLE, REAR SPECIFICATION Devox AxleTA 172-9 L | 163mm + 9mm head, M12 x P1.0 x 19mm for Syntace X-12, with SL02 Switch hollow lever SPEED 2×12-speed
SHIFTERS BaseBar: TRP HD-T910D, hydraulic with integrated Di2 shift buttons (right hand) / Extensions: Shimano Dura-Ace Di2 SW-R9160, TRI/TT DERAILLEUR, FRONT Shimano Ultegra R8050 Di2, braze-on

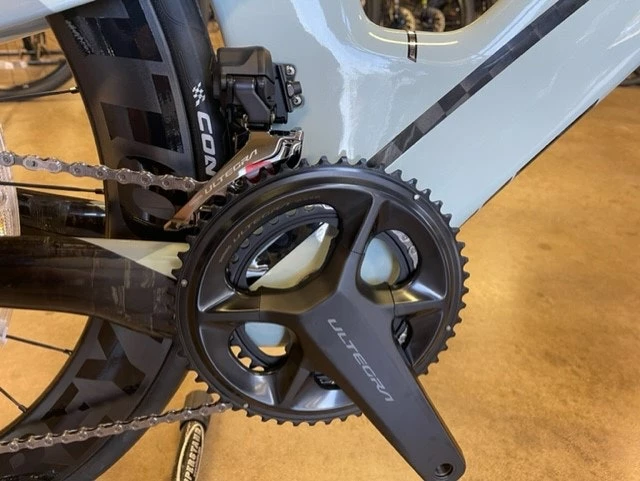

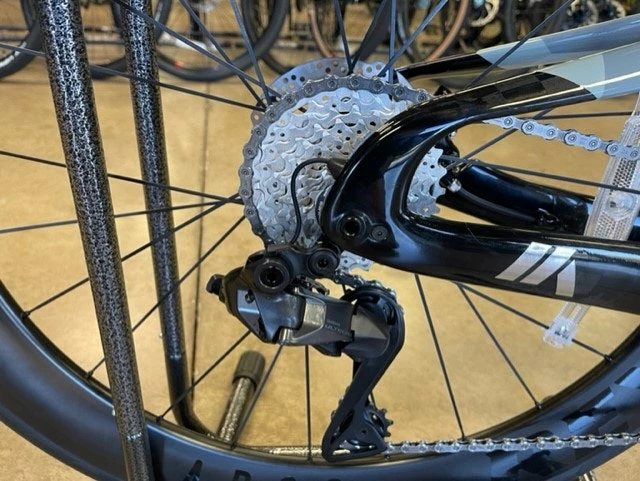

DERAILLEUR, REAR Shimano Ultegra R8050 Di2, short cage CRANK Shimano Ultegra R8000, 52/36T
BOTTOM BRACKET Shimano BBR60 CASSETTE Shimano Ultegra R8000, 12-32T
CHAIN Shimano Ultegra HG701 CRANK LENGTH 48, 51cm: 165mm / 54, 56cm: 170mm / 58cm: 172.5mm /

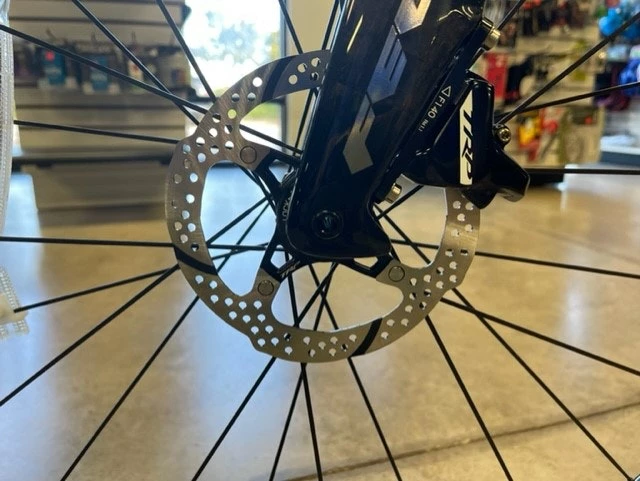

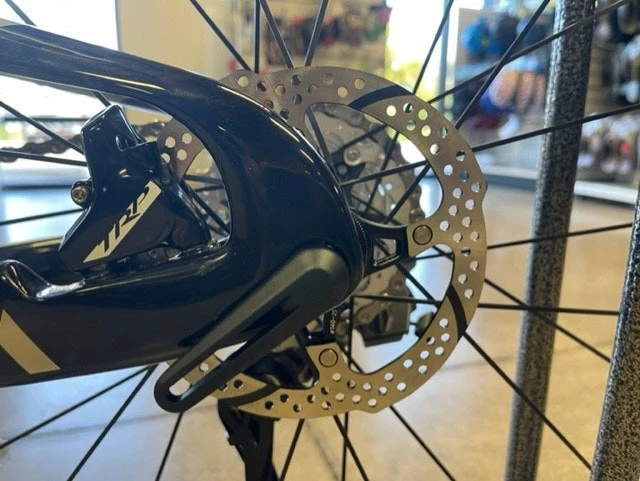

BRAKE LEVERS TRP HD-T910D, hydraulic with integrated Di2 shift buttons (right hand) BRAKE CALIPERS TRP HD-T910, hydraulic disc, flat mount
BRAKE ROTORS TRP TR-25, Center Lock, 140mm WHEELS Reynolds AR58/62 DB Custom, Shimano
TIRES Continental Grand Sport Race, 700x25c TIRE COMPATIBILITY Tubeless Ready

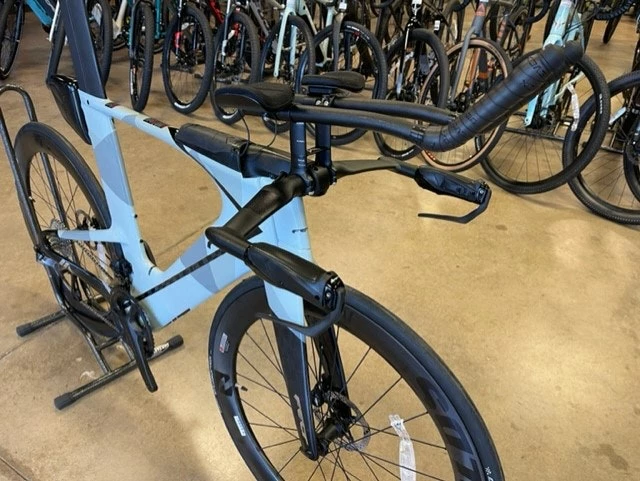

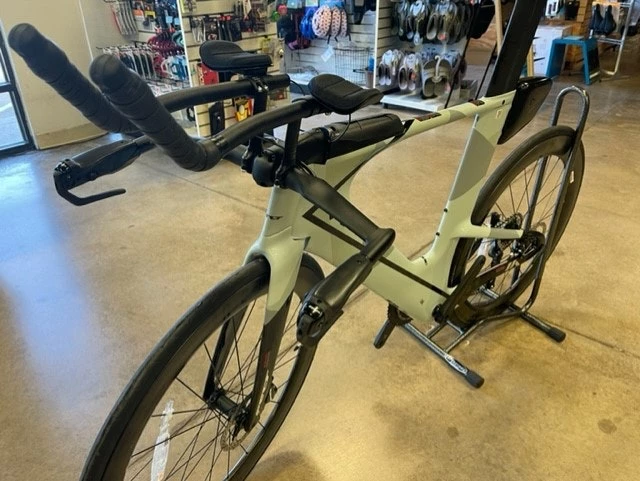

RIMS Carbon HANDLEBAR BaseBar: Devox Bayonet 3.1 | SuperLite aluminum / Extensions: Devox Ergomod | aluminum
STEM Felt Dagger 31.8 | SuperLite aluminum GRIPS / TAPE Felt EVA arm pads with anti-microbial cover and Felt Gel tape
HANDLEBAR CLAMP DIAMETER 31.8mm HANDLEBAR WIDTH 48, 51cm: 39cm / 54, 56, 58cm: 42cm
STEM CLAMP DIAMETER 31.8mm STEM ANGLE -6°
STEM LENGTH 110mm STEM PARTS & TECHNOLOGIES Integrated / Integrated top cap / Integrated headset top cover / Integrated fork cover mounting / Integrated cable routing
SEATPOST Felt AeroTRI IL 1.0 VM | UHC Advanced carbon fiber SEATPOST OFFSET 0mm
SEATPOST LENGTH 300mm SEATPOST PARTS & TECHNOLOGIES Integrated / Compliance Channels with aero covers / AeroTRI InternaLoc 1.0 seatpost clamping system / Patented VariMount (VM) saddle rail clamping system
SADDLE ISM PS1.0 EXTRAS IA CALpac 2.0 Top Tube storage / IA BTSpac Seat Tube storage box / Shimano SM-BCR2 battery charger / Reynolds tubeless valve stems (2x75mm) / Compliance Channel aero seatpost covers / Carbon assembly paste
WEIGHT 21.56 lb, 9.8 kg WEIGHT DISCLAIMER The most accurate way to determine a product’s weight is to have your local dealer weigh it for you. Because we understand that weight is an important metric, we strive to list it when possible. When listed, weight is based on a single sample in a specific size and with all items as shown in the photo. It is not an exact indication of what your bike or frame will weigh, as there are tolerances in many variables involved (size, finish, hardware, components, and accessories). Felt continues to be an industry leader in weight and performance.
SPECIFICATION DISCLAIMER Specifications subject to change without notice.

Please see photos for detailed specifications.

Shipping and Financing Available

For additional information or photos, please email or call us at (817) 251-0612.

Wheel and Component Upgrades Available, Please email or call us at (817) 251-0612.

*Specifications subject to change without notice from manufacturers
